Architecture Portfolio JBake - Vision and Use Cases
Published on 15 January 2026
Architectural vision
Guiding principle
The architecture is based on the principle of separation of concerns:
-
Content : structured AsciiDoc files with rich metadata
-
Presentation: reusable Thymeleaf templates
-
Data : model automatically extracted by JBake from AsciiDoc attributes
-
Style: Bootstrap 5 for visual consistency
Strategic choice: AsciiDoc for the portfolio
| Criterion | Advantage |
|---|---|
Coherence |
Same format as the blog posts |
Metadata |
Structured and extensible attributes ( |
Maintainability |
Simple text editing, Git-versionable |
Flexibility |
May contain rich content (tables, code, images) |
Templating |
JBake automatically extracts attributes for Thymeleaf |

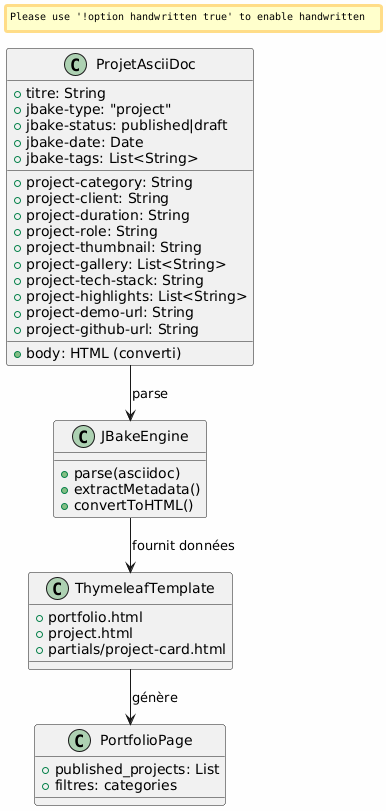

Data model
Each portfolio project is an AsciiDoc document with:
-
Header Metadata : structured information (client, duration, technologies, etc.)
-
Body of the document: narrative description, challenges, solutions, results
-
Custom attributes : prefixed`project-*`for automatic extraction
@startuml
skinparam backgroundColor #FEFEFE
skinparam handwritten false
class ProjetAsciiDoc {
+titre: String
+jbake-type: "project"
+jbake-status: published|draft
+jbake-date: Date
+jbake-tags: List<String>
--
+project-category: String
+project-client: String
+project-duration: String
+project-role: String
+project-thumbnail: String
+project-gallery: List<String>
+project-tech-stack: String
+project-highlights: List<String>
+project-demo-url: String
+project-github-url: String
--
+body: HTML (converti)
}
class JBakeEngine {
+parse(asciidoc)
+extractMetadata()
+convertToHTML()
}
class ThymeleafTemplate {
+portfolio.html
+project.html
+partials/project-card.html
}
class PortfolioPage {
+published_projects: List
+filtres: categories
}
ProjetAsciiDoc --> JBakeEngine : parse
JBakeEngine --> ThymeleafTemplate : fournit données
ThymeleafTemplate --> PortfolioPage : génère
@enduml
Detailed Use Cases

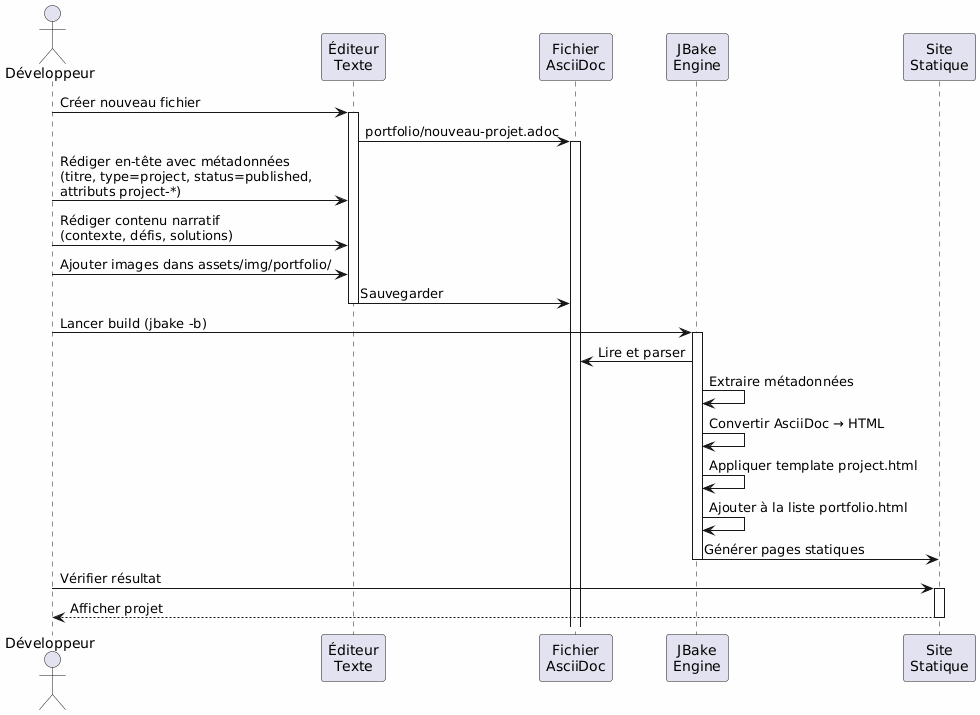

UC1 : Add an item to the portfolio
Nominal flux
@startuml skinparam backgroundColor #FEFEFE actor Développeur as dev participant "Editor\nText" as editor participant "File\nAsciiDoc" as file participant "JBake\nEngine" as jbake participant "Static\nSite" as site dev -> editor : Créer nouveau fichier activate editor editor -> file : portfolio/nouveau-projet.adoc activate file dev -> editor : Rédiger en-tête avec métadonnées\n(titre, type=project, status=published,\nattributs project-*) dev -> editor : Rédiger contenu narratif\n(contexte, défis, solutions) dev -> editor : Ajouter images dans assets/img/portfolio/ editor -> file : Sauvegarder deactivate editor dev -> jbake : Lancer build (jbake -b) activate jbake jbake -> file : Lire et parser jbake -> jbake : Extraire métadonnées jbake -> jbake : Convertir AsciiDoc → HTML jbake -> jbake : Appliquer template project.html jbake -> jbake : Ajouter à la liste portfolio.html jbake -> site : Générer pages statiques deactivate jbake dev -> site : Vérifier résultat activate site site --> dev : Afficher projet deactivate site @enduml
Template of the file to be created
The developer creates`content/portfolio/nom-projet.adoc`with a standardized structure:
-
Header with all required attributes
-
Standardized sections (Context, Challenges, Solutions, Results)
-
Consistent image nomenclature
Validation points
-
The required attributes are present (
jbake-type,jbake-status,project-thumbnail) -
The referenced images exist in`assets/img/portfolio/`
-
The JBake build succeeds without error
-
The project appears on the portfolio page
-
The individual project page displays correctly

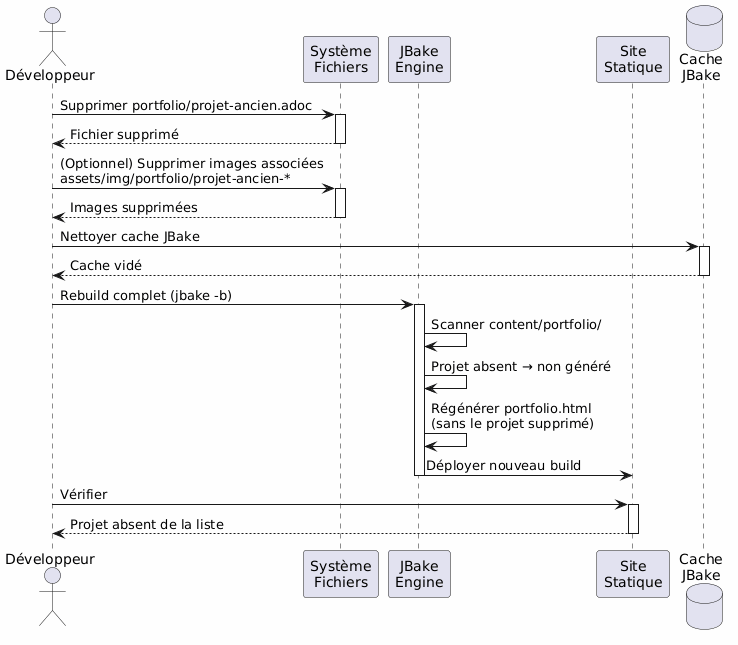

UC2: Delete an item from the portfolio
Nominal flux
@startuml skinparam backgroundColor #FEFEFE actor Développeur as dev participant "System\nFiles" as fs participant "JBake\nEngine" as jbake participant "Static\nSite" as site database "Cache\nJBake" as cache dev -> fs : Supprimer portfolio/projet-ancien.adoc activate fs fs --> dev : Fichier supprimé deactivate fs dev -> fs : (Optionnel) Supprimer images associées\nassets/img/portfolio/projet-ancien-* activate fs fs --> dev : Images supprimées deactivate fs dev -> cache : Nettoyer cache JBake activate cache cache --> dev : Cache vidé deactivate cache dev -> jbake : Rebuild complet (jbake -b) activate jbake jbake -> jbake : Scanner content/portfolio/ jbake -> jbake : Projet absent → non généré jbake -> jbake : Régénérer portfolio.html\n(sans le projet supprimé) jbake -> site : Déployer nouveau build deactivate jbake dev -> site : Vérifier activate site site --> dev : Projet absent de la liste deactivate site @enduml
Alternative strategy: archiving
Instead of permanently deleting, possibility to create a folder`content/portfolio/archive/`:
-
Move the file instead of deleting it
-
Allows easy restoration
-
Keep the Git history clearer
Cleaning of resources
-
Check orphaned images in`assets/img/portfolio/`
-
Delete images not referenced by other projects
-
Clean the JBake cache to avoid phantom references

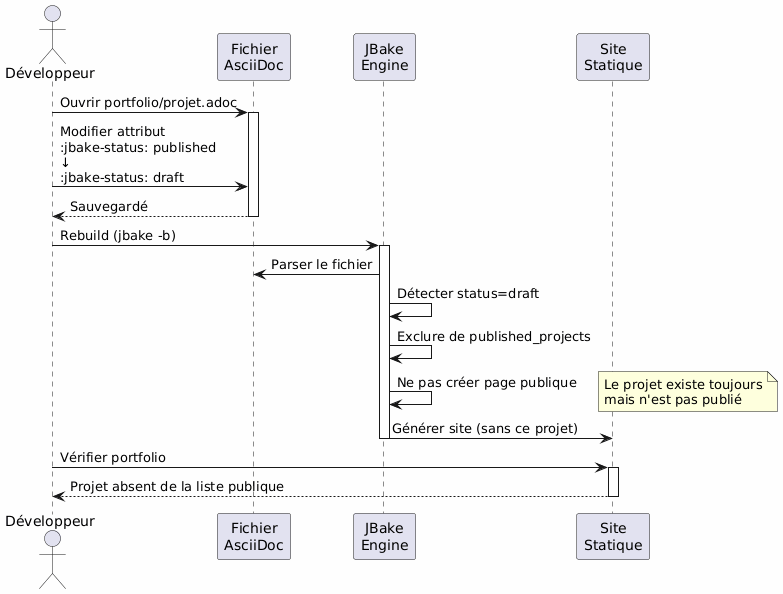

UC3: Set as not published (draft)
nominal flux
@startuml skinparam backgroundColor #FEFEFE actor Développeur as dev participant "File\nAsciiDoc" as file participant "JBake\nEngine" as jbake participant "Site\nStatic" as site dev -> file : Ouvrir portfolio/projet.adoc activate file dev -> file : Modifier attribut\n:jbake-status: published\n↓\n:jbake-status: draft file --> dev : Sauvegardé deactivate file dev -> jbake : Rebuild (jbake -b) activate jbake jbake -> file : Parser le fichier jbake -> jbake : Détecter status=draft jbake -> jbake : Exclure de published_projects jbake -> jbake : Ne pas créer page publique note right Le projet existe toujours mais n'est pas publié end note jbake -> site : Générer site (sans ce projet) deactivate jbake dev -> site : Vérifier portfolio activate site site --> dev : Projet absent de la liste publique deactivate site @enduml

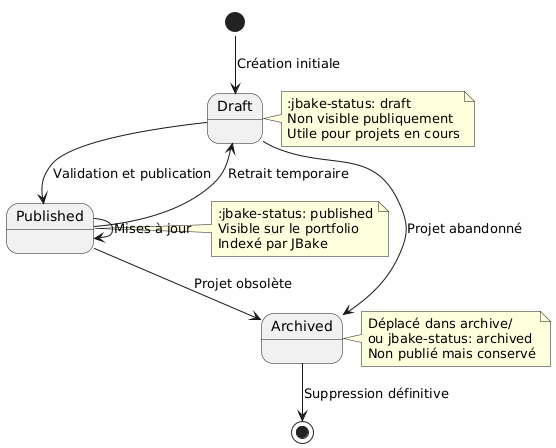

Possible states
@startuml skinparam backgroundColor #FEFEFE [*] --> Draft : Création initiale Draft --> Published : Validation et publication Published --> Draft : Retrait temporaire Draft --> Archived : Projet abandonné Published --> Archived : Projet obsolète Archived --> [*] : Suppression définitive Published --> Published : Mises à jour note right of Draft :jbake-status: draft Non visible publiquement Utile pour projets en cours end note note right of Published :jbake-status: published Visible sur le portfolio Indexé par JBake end note note right of Archived Déplacé dans archive/ ou jbake-status: archived Non publié mais conservé end note @enduml
Typical use cases
-
Project in draft: create as draft, publish when ready
-
Temporarily confidential project: move to draft while awaiting client approval
-
Major update : switch to draft, edit, republish
-
A/B testing: duplicate in draft, test, publish the best version

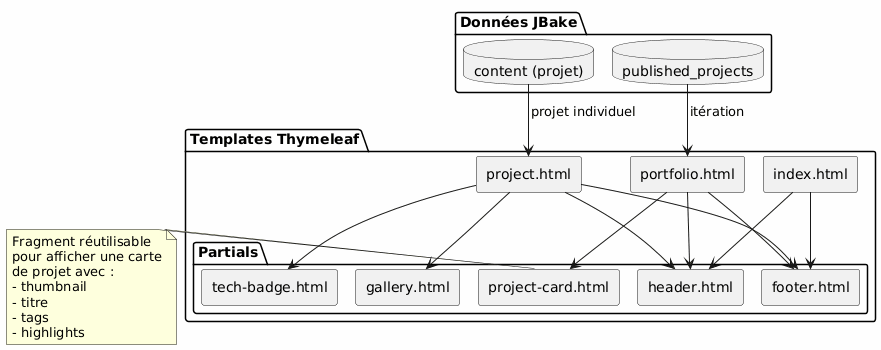

Templating Architecture
Reusable template strategy
@startuml
skinparam backgroundColor #FEFEFE
skinparam componentStyle rectangle
package "Thymeleaf templates" {
component [index.html] as index
component [portfolio.html] as portfolio
component [project.html] as project
package "Partials" {
component [header.html] as header
component [footer.html] as footer
component [project-card.html] as card
component [tech-badge.html] as badge
component [gallery.html] as gallery
}
}
package "JBake Data" {
database "published_projects" as data
database "content (project)" as content
}
index --> header
index --> footer
portfolio --> header
portfolio --> footer
portfolio --> card
data --> portfolio : itération
project --> header
project --> footer
project --> badge
project --> gallery
content --> project : projet individuel
note right of card
Fragment réutilisable
pour afficher une carte
de projet avec :
- thumbnail
- titre
- tags
- highlights
end note
@enduml

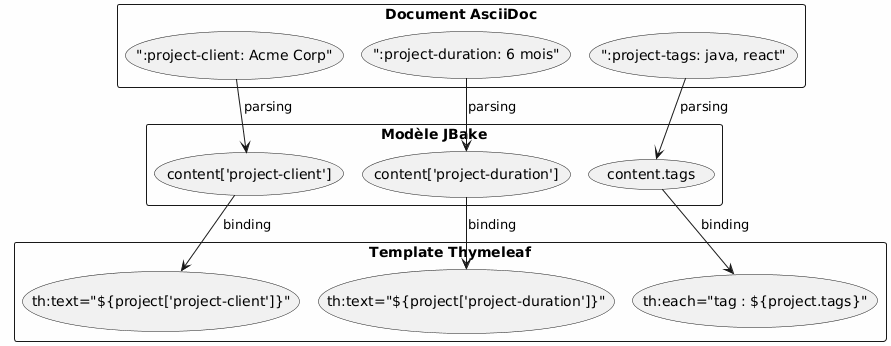

Data extraction pattern
JBake automatically transforms AsciiDoc attributes into properties accessible in Thymeleaf:
@startuml
skinparam backgroundColor #FEFEFE
rectangle "AsciiDoc Document" {
(":project-client: Acme Corp") as attr1
(":project-duration: 6 months") as attr2
(":project-tags: java, react") as attr3
}
rectangle "JBake Template" {
(content['project-client']) as prop1
(content['project-duration']) as prop2
(content.tags) as prop3
}
rectangle "Thymeleaf template" {
(th:text="${project['project-client']}") as tmpl1
(th:text="${project['project-duration']}") as tmpl2
(th:each="tag: ${project.tags}") as tmpl3
}
attr1 --> prop1 : parsing
attr2 --> prop2 : parsing
attr3 --> prop3 : parsing
prop1 --> tmpl1 : binding
prop2 --> tmpl2 : binding
prop3 --> tmpl3 : binding
@enduml
Naming conventions
-
Project attributes: prefix`project-*` (ex:
project-client,project-tech-stack) -
Files : kebab-case (ex:`ecommerce-platform.adoc`)
-
Images : project name (e.g:`ecommerce-platform-thumb.jpg`)
-
Templates: functional name (e.g`project-card.html`,
tech-badge.html)
Publication Workflow
Development pipeline
@startuml
skinparam backgroundColor #FEFEFE
skinparam handwritten false
class ProjetAsciiDoc {
+titre: String
+jbake-type: "project"
+jbake-status: published|draft
+jbake-date: Date
+jbake-tags: List<String>
__
+project-category: String
+project-client: String
+project-duration: String
+project-role: String
+project-thumbnail: String
+project-gallery: List<String>
+project-tech-stack: String
+project-highlights: List<String>
+project-demo-url: String
+project-github-url: String
__
+body: HTML (converti)
}
class JBakeEngine {
+parse(asciidoc)
+extractMetadata()
+convertToHTML()
}
class ThymeleafTemplate {
+portfolio.html
+project.html
+partials/project-card.html
}
class PortfolioPage {
+published_projects: List
+filtres: categories
}
ProjetAsciiDoc --> JBakeEngine : parse
JBakeEngine --> ThymeleafTemplate : fournit données
ThymeleafTemplate --> PortfolioPage : génère
@enduml
Environments
| Environment | Usage | Accepted status |
|---|---|---|
Local |
Development and preview |
draft, published |
Staging |
Pre-production validation |
published only |
Production |
Public site |
published only |
Extensibility
Adding new attributes
To enrich the data model, simply add new prefixed attributes`project-*`:
-
`project-awards`Awards and recognitions
-
project-testimonial: Client citation -
`project-team-size`Team size
-
`project-budget-range`Budget range
These attributes become automatically available in the templates without modification of the JBake engine.
Advanced categorization
@startuml
skinparam backgroundColor #FEFEFE
object Projet {
project-category = "web"
project-subcategory = "e-commerce"
project-industry = "retail"
project-complexity = "high"
}
object Taxonomie {
categories : [web, mobile, data, devops]
subcategories : Map<category, List>
industries : [retail, finance, healthcare, ...]
complexities : [low, medium, high]
}
Projet --> Taxonomie : classifié selon
note right of Taxonomie
Permet filtrage multi-critères
dans le template portfolio.html
via JavaScript ou côté serveur
end note
@enduml
Best Practices
File organization
-
One file = one project : avoid mixing several projects
-
Images in dedicated folder
assets/img/portfolio/nom-projet/ -
Consistent nomenclature : facilitates search and maintenance
-
Versioning Git : complete tracking of modifications
Content management
-
Default draft status : publish only when ready
-
Review before publication : quality and confidentiality validation
-
Complete metadata : fill in all relevant fields
-
Rich narrative content : do not limit yourself to metadata
Performance
-
Optimize images : compression before commit
-
Pagination if necessary : if >20 projects
-
Lazy loading : gallery images loaded on demand
-
Browser cache : appropriate headers for assets
Conclusion
This architecture allows:
-
Simplicity of use: add a project = create a text file
-
Flexibility : extensible via new attributes
-
Maintainability : content/presentation separation
-
Traceability : complete Git versioning
-
Automation : build and deployment continuous possible
Choosing AsciiDoc ensures consistency with the rest of the site while providing the richness of metadata needed for a professional portfolio.
