Εισαγωγή

Σκοπός : Μετατρέπετε έναν απλό pipeline σε έναν αξιόπιστο βιομηχανικό pipeline που συμμορφώνεται με τις σύγχρονες πρότυπα του πακετάζ και της λογισμικής μηχανικής.

Στο πρώτο μέρος αυτής της σειράς, κατασκευάσαμε ένα απλό αλλά αποτελεσματικό pipeline CI/CD για να αυτοματοποιήσουμε τα τεστ και τη δημοσίευση ενός πακέτου Python στο PyPI.

Τώρα είναι η ώρα για να επαγγελματοποιήσουμε αυτό το pipeline. Σε αυτό το δεύτερο μέρος, θα :

  • Μετακόμιση στον σύγχρονο πρότυπο pyproject.toml,

  • Προσθέστε εργαλεία ποιότητας και ασφάλειας (Black, Mypy, Bandit, Safety)

  • Θέτε σε εφαρμογή δοκιμές πολλαπλών εκδόσεων,

  • Ενσωματώστε μια σταδιακή ανάπτυξη μέσω του Test PyPI,

  • Αυτοματοποίηση της διαχείρισης εκδόσεων και βελτίωση της παρακολούθησης του pipeline.

Προετοιμάστε να μεταβείτε από ένα λειτουργικό pipeline σε μια επαγγελματική υποδομή CI/CD.

Η ανάπτυξη μιας εφαρμογής Python στο PyPI απαιτεί ένα ισχυρό CI/CD pipeline που αυτοματοποιεί τα τεστ, το χτίσιμο και τη δημοσίευση των πακέτων. Αυτό το άρθρο αναλυτικά περιγράφει τη ρύθμιση ενός πλήρους pipeline χρησιμοποιώντας GitHub Actions για μια εφαρμογή CLI Python, βασισμένο στις καλύτερες πρακτικές του σύγχρονου ecosystem Python.

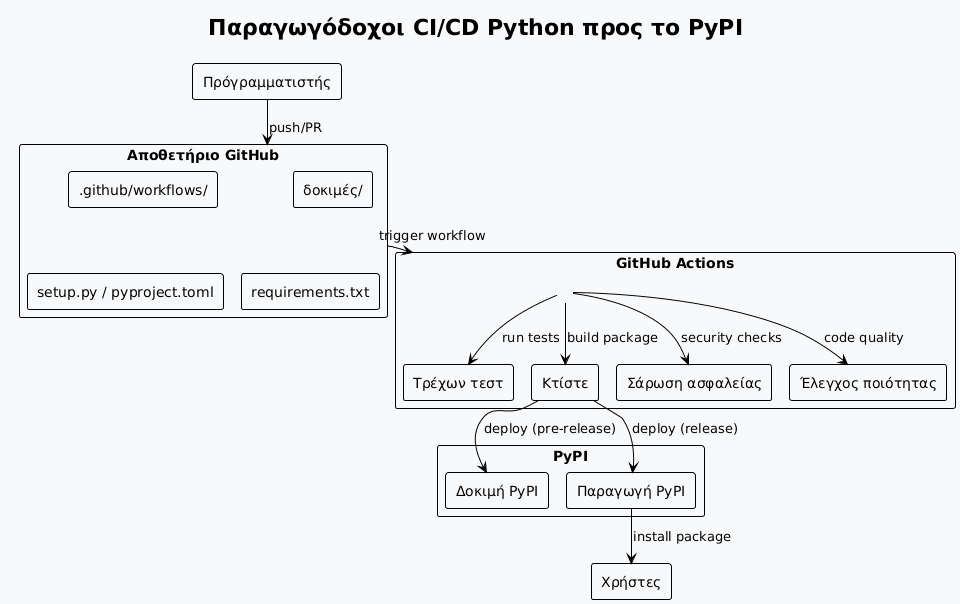

Αρχιτεκτονική του pipeline CI/CD

Το pipeline που θα κατασκευάσουμε ακολουθεί μια προσέγγιση σε βήματα:

Diagram

Δομή του έργου

Μια εφαρμογή Python CLI έτοιμη για διανομή πρέπει να τηρεί μια τυποποιημένη δομή:

playlist-downloader/
├── .github/
│   └── workflows/
│       ├── ci.yml
│       ├── release.yml
│       └── security.yml
├── src/
│   └── playlist_downloader/
│       ├── __init__.py
│       ├── cli.py
│       ├── core/
│       └── adapters/
├── tests/
│   ├── unit/
│   ├── integration/
│   └── conftest.py
├── docs/
├── pyproject.toml
├── requirements.txt
├── requirements-dev.txt
├── MANIFEST.in
├── README.md
├── LICENSE
└── CHANGELOG.md

�Ρύθμιση πακέτου με το pyproject.toml

Το αρχείο`pyproject.toml`είναι το σύγχρονο πρότυπο για τη ρύθμιση των πακέτων Python :

[build-system]
requires = ["setuptools>=45", "wheel", "setuptools_scm>=6.2"]
build-backend = "setuptools.build_meta"

[project]
name = "playlist-downloader"
authors = [
    {name = "Christophe Hérolivier", email = "[email protected]"},
]
description = "CLI tool for YouTube playlist management"
readme = "README.md"
requires-python = ">=3.8"
keywords = ["youtube", "playlist", "cli", "downloader"]
license = {text = "MIT"}
classifiers = [
    "Development Status :: 4 - Beta",
    "Environment :: Console",
    "Intended Audience :: End Users/Desktop",
    "License :: OSI Approved :: MIT License",
    "Operating System :: OS Independent",
    "Programming Language :: Python :: 3",
    "Programming Language :: Python :: 3.8",
    "Programming Language :: Python :: 3.9",
    "Programming Language :: Python :: 3.10",
    "Programming Language :: Python :: 3.11",
    "Topic :: Multimedia :: Sound/Audio",
    "Topic :: Utilities",
]
dependencies = [
    "typer>=0.9.0",
    "yt-dlp>=2023.7.6",
    "google-api-python-client>=2.0.0",
    "google-auth-oauthlib>=1.0.0",
    "pyyaml>=6.0",
    "rich>=13.0.0",
]
dynamic = ["version"]

[project.optional-dependencies]
dev = [
    "pytest>=7.0.0",
    "pytest-cov>=4.0.0",
    "pytest-mock>=3.10.0",
    "black>=23.0.0",
    "flake8>=6.0.0",
    "mypy>=1.0.0",
    "pre-commit>=3.0.0",
    "tox>=4.0.0",
]
test = [
    "pytest>=7.0.0",
    "pytest-cov>=4.0.0",
    "pytest-mock>=3.10.0",
]

[project.urls]
Homepage = "https://github.com/cheroliv/playlist-downloader"
Documentation = "https://github.com/cheroliv/playlist-downloader#readme"
Repository = "https://github.com/cheroliv/playlist-downloader.git"
"Bug Tracker" = "https://github.com/cheroliv/playlist-downloader/issues"

[project.scripts]
playlist-downloader = "playlist_downloader.cli:main"

[tool.setuptools_scm]
write_to = "src/playlist_downloader/_version.py"

[tool.setuptools.packages.find]
where = ["src"]

[tool.pytest.ini_options]
testpaths = ["tests"]
python_files = ["test_*.py"]
python_classes = ["Test*"]
python_functions = ["test_*"]
addopts = [
    "--cov=src/playlist_downloader",
    "--cov-report=html",
    "--cov-report=term-missing",
    "--cov-fail-under=85",
]

[tool.black]
line-length = 88
target-version = ['py38']
include = '\.pyi?$'
extend-exclude = '''
/(
  \.eggs
  | \.git
  | \.hg
  | \.mypy_cache
  | \.tox
  | \.venv
  | _build
  | buck-out
  | build
  | dist
)/
'''

[tool.mypy]
python_version = "3.8"
warn_return_any = true
warn_unused_configs = true
disallow_untyped_defs = true
disallow_incomplete_defs = true
check_untyped_defs = true
disallow_untyped_decorators = true
no_implicit_optional = true
warn_redundant_casts = true
warn_unused_ignores = true
warn_no_return = true
warn_unreachable = true
strict_equality = true

[[tool.mypy.overrides]]
module = [
    "yt_dlp.*",
    "googleapiclient.*",
    "google_auth_oauthlib.*",
]
ignore_missing_imports = true

�Ροή εργασιών CI/CD - Δοκιμές και Ποιότητα

Το κύριο workflow (ci.yml) εκτελεί τα τεστ σε πολλές εκδόσεις της Python :

name: CI

on:
  push:
    branches: [ main, develop ]
  pull_request:
    branches: [ main ]

jobs:
  test:
    runs-on: ubuntu-latest
    strategy:
      matrix:
        python-version: ["3.8", "3.9", "3.10", "3.11"]

    steps:
    - uses: actions/checkout@v4
      with:
        fetch-depth: 0

    - name: Set up Python ${{ matrix.python-version }}
      uses: actions/setup-python@v4
      with:
        python-version: ${{ matrix.python-version }}

    - name: Cache dependencies
      uses: actions/cache@v3
      with:
        path: |
          ~/.cache/pip
          ~/.cache/pre-commit
        key: ${{ runner.os }}-pip-${{ hashFiles('**/requirements*.txt') }}
        restore-keys: |
          ${{ runner.os }}-pip-

    - name: Install dependencies
      run: |
        python -m pip install --upgrade pip
        pip install -e ".[dev]"

    - name: Lint with flake8
      run: |
        flake8 src tests --count --select=E9,F63,F7,F82 --show-source --statistics
        flake8 src tests --count --exit-zero --max-complexity=10 --max-line-length=88 --statistics

    - name: Check code formatting with Black
      run: black --check src tests

    - name: Type checking with mypy
      run: mypy src

    - name: Run tests with pytest
      run: |
        pytest tests/ -v --cov=src/playlist_downloader \
          --cov-report=xml --cov-report=term-missing

    - name: Upload coverage to Codecov
      uses: codecov/codecov-action@v3
      if: matrix.python-version == '3.11'
      with:
        file: ./coverage.xml
        flags: unittests
        name: codecov-umbrella

  security:
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v4

    - name: Set up Python
      uses: actions/setup-python@v4
      with:
        python-version: "3.11"

    - name: Install dependencies
      run: |
        python -m pip install --upgrade pip
        pip install bandit[toml] safety

    - name: Run security checks with bandit
      run: bandit -r src/ -f json -o bandit-report.json

    - name: Check dependencies with safety
      run: safety check --json --output safety-report.json

    - name: Upload security reports
      uses: actions/upload-artifact@v3
      if: always()
      with:
        name: security-reports
        path: |
          bandit-report.json
          safety-report.json

  build:
    needs: [test, security]
    runs-on: ubuntu-latest
    steps:
    - uses: actions/checkout@v4
      with:
        fetch-depth: 0

    - name: Set up Python
      uses: actions/setup-python@v4
      with:
        python-version: "3.11"

    - name: Install build dependencies
      run: |
        python -m pip install --upgrade pip
        pip install build twine

    - name: Build package
      run: python -m build

    - name: Check package with twine
      run: twine check dist/*

    - name: Upload build artifacts
      uses: actions/upload-artifact@v3
      with:
        name: dist
        path: dist/

Workflow Έκδοσης και Διανομής

Η ροή έκδοση (release.yml) διαχειρίζεται την αυτόματη δημοσίευση στο PyPI :

name: Release

on:
  push:
    tags:
      - 'v*.*.*'
  workflow_dispatch:
    inputs:
      environment:
        description: 'Deployment environment'
        required: true
        default: 'test'
        type: choice
        options:
        - test
        - production

env:
  PYTHON_VERSION: "3.11"

jobs:
  release:
    runs-on: ubuntu-latest
    environment:
      name: ${{ github.event.inputs.environment || (startsWith(github.ref, 'refs/tags/') && 'production' || 'test') }}

    steps:
    - uses: actions/checkout@v4
      with:
        fetch-depth: 0

    - name: Set up Python
      uses: actions/setup-python@v4
      with:
        python-version: ${{ env.PYTHON_VERSION }}

    - name: Install dependencies
      run: |
        python -m pip install --upgrade pip
        pip install build twine

    - name: Build package
      run: python -m build

    - name: Check package
      run: twine check dist/*

    - name: Publish to Test PyPI
      if: github.event.inputs.environment == 'test' || (startsWith(github.ref, 'refs/tags/') && contains(github.ref, 'rc'))
      env:
        TWINE_USERNAME: __token__
        TWINE_PASSWORD: ${{ secrets.TEST_PYPI_API_TOKEN }}
      run: |
        twine upload --repository testpypi dist/*

    - name: Publish to PyPI
      if: github.event.inputs.environment == 'production' || (startsWith(github.ref, 'refs/tags/') && !contains(github.ref, 'rc'))
      env:
        TWINE_USERNAME: __token__
        TWINE_PASSWORD: ${{ secrets.PYPI_API_TOKEN }}
      run: |
        twine upload dist/*

    - name: Create GitHub Release
      if: startsWith(github.ref, 'refs/tags/')
      uses: actions/create-release@v1
      env:
        GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
      with:
        tag_name: ${{ github.ref }}
        release_name: Release ${{ github.ref }}
        draft: false
        prerelease: ${{ contains(github.ref, 'rc') }}

  post-release:
    needs: release
    runs-on: ubuntu-latest
    if: startsWith(github.ref, 'refs/tags/')

    steps:
    - uses: actions/checkout@v4

    - name: Set up Python
      uses: actions/setup-python@v4
      with:
        python-version: ${{ env.PYTHON_VERSION }}

    - name: Test installation from PyPI
      run: |
        sleep 60  # Attendre la propagation sur PyPI
        pip install playlist-downloader
        playlist-downloader --version

    - name: Update documentation
      run: |
        # Script pour mettre à jour la documentation
        echo "Documentation updated for version ${GITHUB_REF#refs/tags/}"

Διαγράμματα Αρχιτεκτονικής

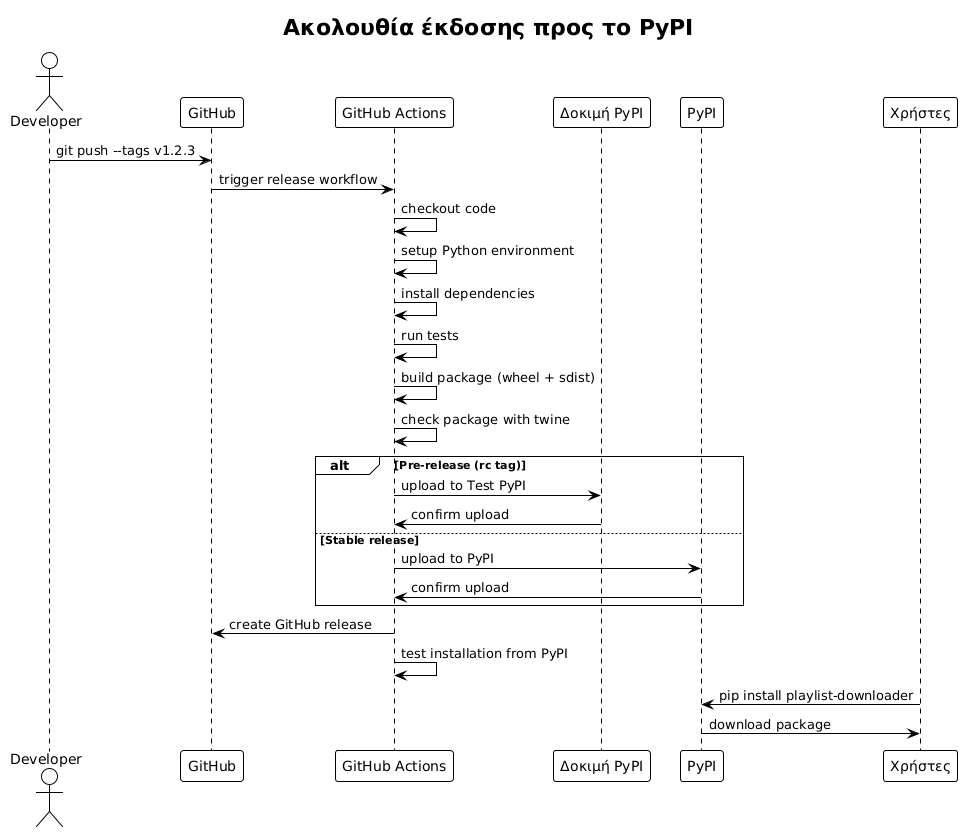

Διάγραμμα ακολουθίας - διαδικασία κυκλοφορίας

Diagram

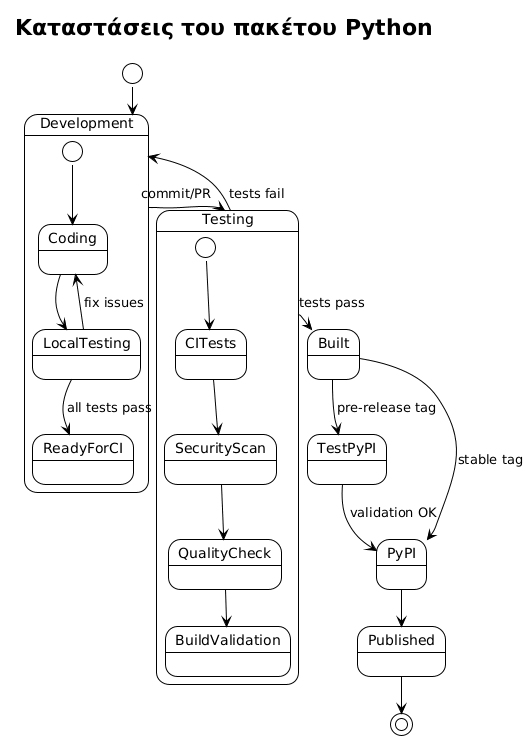

Διάγραμμα cathedral - Κύκλος ζωής του πακέ</tool_call>ς

Diagram

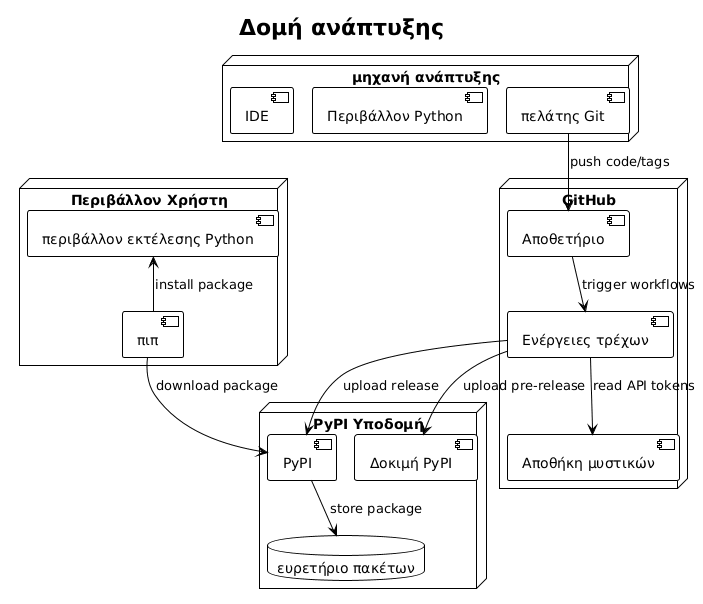

Διάγραμμα ανάπτυξης - Υποδομή CI/CD

Diagram

Αντικείμενα και Μοντέλα του Pipeline

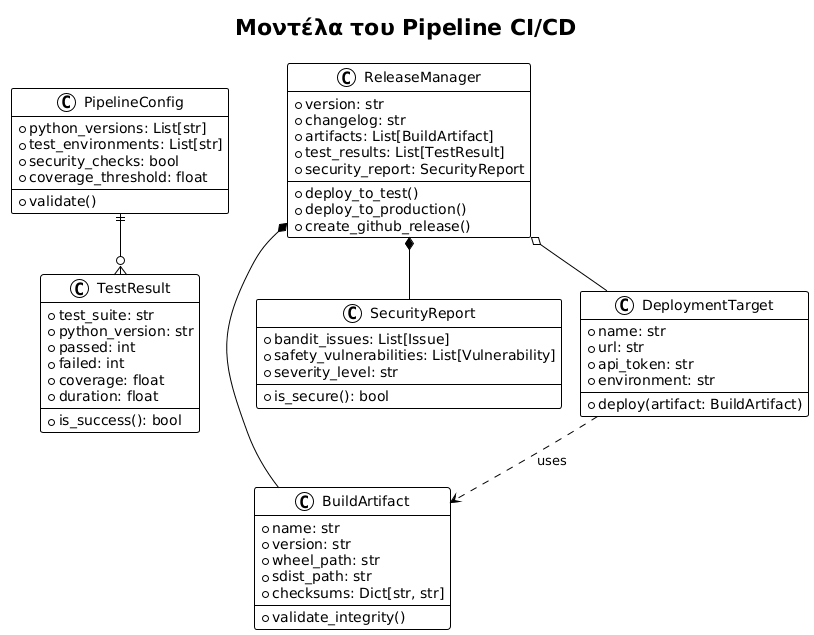

Διάγραμμα Κλάσεων - Μοντέλα CI/CD

Diagram

Ρύθμιση μυστικών

για να λειτουργήσει το pipeline, πρέπει να ρυθμίσετε τα ακόλουθα μυστικά στο GitHub :

Μυστικά GitHub Actions

# Dans Settings > Secrets and variables > Actions

# Token PyPI pour la production
PYPI_API_TOKEN=pypi-...

# Token Test PyPI pour les pré-releases
TEST_PYPI_API_TOKEN=pypi-...

# Token GitHub pour créer les releases
GITHUB_TOKEN=(automatiquement fourni)

# Token Codecov (optionnel)
CODECOV_TOKEN=...

Δημιουργία των διακριτικών PyPI

# 1. Créer un compte sur PyPI et Test PyPI
# 2. Aller dans Account Settings > API tokens
# 3. Créer un token avec scope "Entire account" ou spécifique au projet
# 4. Format du token : pypi-AgEIcHlwaS5vcmc...

Σκρίπτες τοπικής ανάπτυξης

Για να διευκολύνετε την ανάπτυξη, δημιουργήστε σενάρια βοηθών:

Makefile

.PHONY: install test lint format security build clean release-test release-prod

install:
	pip install -e ".[dev]"

test:
	pytest tests/ -v --cov=src/playlist_downloader

lint:
	flake8 src tests
	mypy src

format:
	black src tests

security:
	bandit -r src/
	safety check

build:
	python -m build
	twine check dist/*

clean:
	rm -rf build/ dist/ *.egg-info/
	find . -type d -name __pycache__ -delete
	find . -name "*.pyc" -delete

release-test: clean build
	twine upload --repository testpypi dist/*

release-prod: clean build
	twine upload dist/*

pre-commit: format lint test security
	@echo "✅ Prêt pour commit"

Σενάριο Έκδοσης

#!/usr/bin/env python3
"""Script pour gérer les versions du projet."""

import sys
import subprocess
from pathlib import Path

def get_current_version():
    """Récupère la version actuelle depuis git."""
    try:
        result = subprocess.run(
            ["git", "describe", "--tags", "--abbrev=0"],
            capture_output=True,
            text=True,
            check=True
        )
        return result.stdout.strip()
    except subprocess.CalledProcessError:
        return "0.0.0"

def create_version_tag(version, message=None):
    """Crée un tag de version."""
    if not version.startswith('v'):
        version = f'v{version}'

    tag_message = message or f"Release {version}"

    subprocess.run(["git", "tag", "-a", version, "-m", tag_message], check=True)
    print(f"✅ Tag {version} créé")

    # Push le tag
    subprocess.run(["git", "push", "origin", version], check=True)
    print(f"✅ Tag {version} poussé vers origin")

if __name__ == "__main__":
    if len(sys.argv) < 2:
        current = get_current_version()
        print(f"Version actuelle: {current}")
        print("Usage: python version.py <new_version> [message]")
        sys.exit(1)

    new_version = sys.argv[1]
    message = sys.argv[2] if len(sys.argv) > 2 else None

    create_version_tag(new_version, message)

Καλές πρακτικές και συστάσεις

Σεμαντική διαχείριση εκδόσεων

Χρησιμοποιήστε τη σημασιολογική εκδοχή (SemVer):

  • MAJOR.MINOR.PATCH (ex: 1.2.3)

  • MAJOR: αλλαγές ασυμβατές

  • MINOR: νέες συμβατές λειτουργίες

  • PATCH: συμβατές διορθώσεις σφαλμάτων

Στρατζηγια διακλαδωσης

main          ──●──●──●──●──●────●── (releases stables)
               /       /          /
develop    ──●──●──●──●──●──●──●──●── (développement)
            /     /        /
feature/xxx  ●──●──●──●──●──/ (fonctionnalités)

δοκιμές και κάλυψη

  • Ελάχιστη καλύμversa κώδικα : 85%

  • Μονάδιες δοκιμές για την επιχειρηματική λογική

  • Ενταξιακά τεστ για τους αδαπτήρες

  • Τεστ από άκρο σε άκρο για τα CLI

Ασφάλεια

  • Αυτόματο σαρώμα εξαρτήσεων (Safety)

  • Στατική ανάλυση κώδικα (Bandit)

  • Τα μυστικά ποτέ στον κώδικα

  • Χρήση συγκεκριμένων διακριτικών PyPI

Παρακολούθηση και Παρατηρησιμότητα

Μετρικά Pipeline

# .github/workflows/metrics.yml
name: Pipeline Metrics

on:
  workflow_run:
    workflows: ["CI", "Release"]
    types: [completed]

jobs:
  metrics:
    runs-on: ubuntu-latest
    steps:
    - name: Collect metrics
      run: |
        echo "Pipeline: ${{ github.event.workflow_run.name }}"
        echo "Status: ${{ github.event.workflow_run.conclusion }}"
        echo "Duration: ${{ github.event.workflow_run.updated_at - github.event.workflow_run.created_at }}"
        # Envoyer vers système de monitoring

Ειδοποιήσεις

# Ajout dans les workflows pour notifications
- name: Notify on failure
  if: failure()
  uses: 8398a7/action-slack@v3
  with:
    status: failure
    text: "❌ Pipeline failed for ${{ github.repository }}"
  env:
    SLACK_WEBHOOK_URL: ${{ secrets.SLACK_WEBHOOK }}

Συμπέρασμα

Αυτό το πλήρες pipeline CI/CD για Python προσφέρει:

  • Πλήρης αυτοματοποίηση: από τη δοκιμασία του κώδικα προς τη δημοσίευση

  • Ασφάλειααυτόματες άρωσεις και ασφαλής διαχείριση των μυστικών

  • Ποιότηταδοκιμές πολλαπλών εκδόσεων, linting και καλυμμένο κώδικα

  • αξιοπιστία: προοδευτική ανάπτυξη μέσω Test PyPI

  • ιχνευσιμότηταartifacts, αναφορές και releases GitHub

Η υιοθέτηση αυτών των πρακτικών εξασφαλίζει μια ισχυρή και επαγγελματική διαδικασία παράδοσης για τις εφαρμογές σας Python CLI, διευκολύνοντας τη συντήρηση και την εξέλιξη των εργών σας στον μακρόπρόθεσμο χρόνο.

Σχετικά άρθρα
